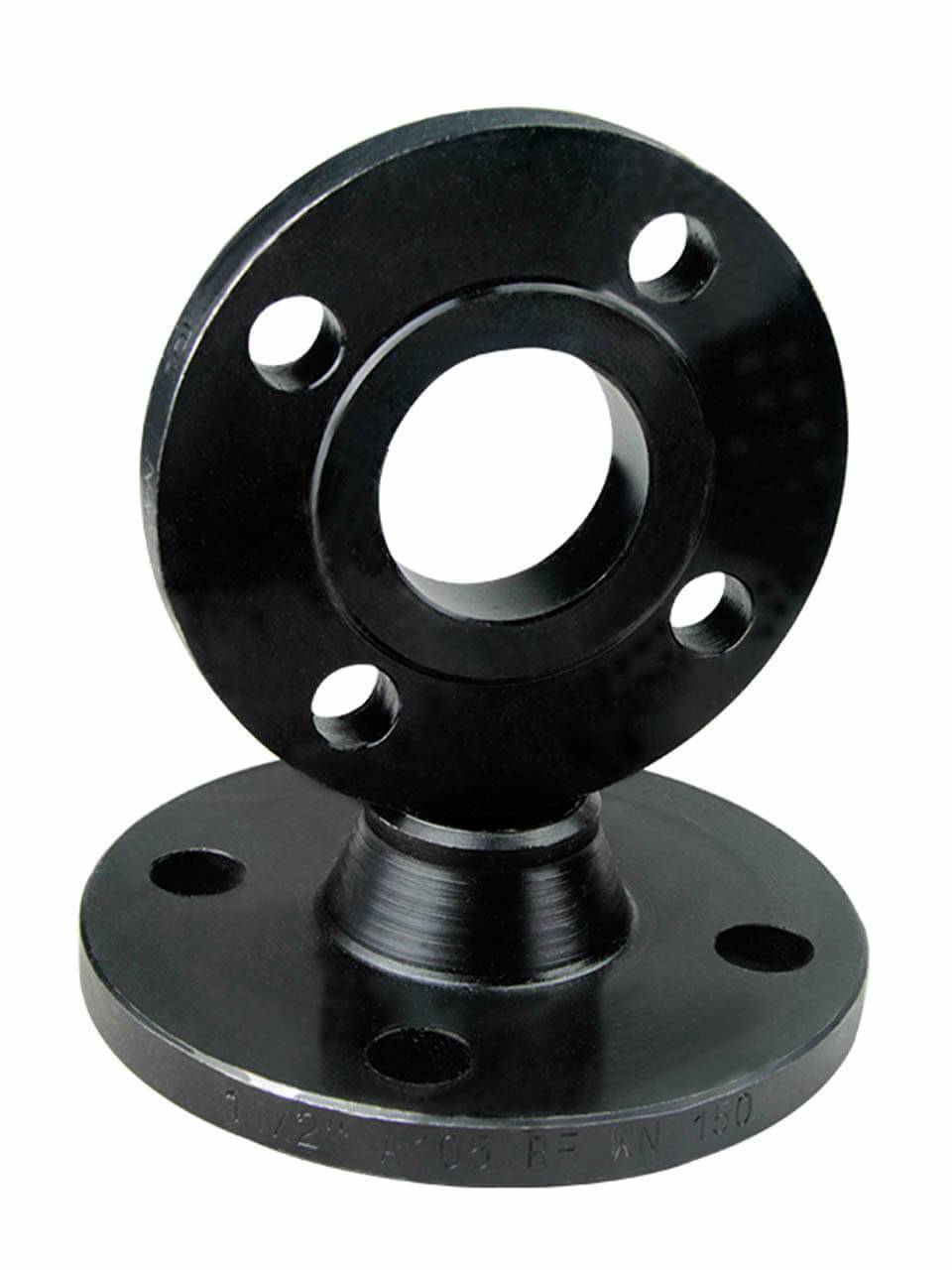

Carbon steel flanges are essential components in piping systems, used to connect pipes, valves, pumps, and other equipment securely. Known for their high strength, durability, and cost-effectiveness, carbon steel flanges are widely used across industries such as oil and gas, petrochemicals, power generation, water treatment, construction, and heavy engineering. Their ability to withstand high pressure and temperature makes them a preferred choice for demanding industrial applications.
What Are Carbon Steel Flanges?
Carbon steel flanges are forged or cast fittings made from carbon steel and designed to provide a strong, leak-proof connection between piping components. They are bolted together with gaskets placed between mating surfaces to ensure a tight seal. Carbon steel flanges are available in various designs, sizes, and pressure ratings to suit different operational requirements.
Common carbon steel grades used for flanges include ASTM A105, ASTM A350 LF2, ASTM A694, and ASTM A516. The choice of grade depends on factors such as temperature, pressure, and service environment.
Types of Carbon Steel Flanges
There are several types of carbon steel flanges, each designed for specific applications:
-
Weld Neck Flanges – Ideal for high-pressure and high-temperature services due to their tapered hub design.
-
Slip On Flanges – Easy to install and cost-effective for low to medium pressure applications.
-
Socket Weld Flanges – Suitable for small-diameter, high-pressure piping systems.
-
Threaded Flanges – Used where welding is not possible or permitted.
-
Blind Flanges – Used to close or isolate the end of a piping system.
-
Lap Joint Flanges – Commonly used with stub ends in systems requiring frequent dismantling.
Key Features and Advantages
Carbon steel flanges offer excellent mechanical strength and toughness, allowing them to perform reliably under pressure and temperature variations. Their good weldability makes installation and maintenance easier, while their robust construction ensures long service life.
Another major advantage of carbon steel flanges is their cost efficiency. Compared to stainless steel or alloy steel flanges, carbon steel options provide reliable performance at a lower cost, making them ideal for large-scale industrial projects.
Standards and Specifications
Carbon steel flanges are manufactured according to international standards to ensure safety and compatibility. Common standards include ASME B16.5, ASME B16.47, EN 1092-1, DIN, BS, and JIS. Pressure classes typically range from Class 150 to Class 2500, depending on application requirements.
Surface finishes such as raised face (RF), flat face (FF), and ring type joint (RTJ) are available to suit different sealing needs.
Applications of Carbon Steel Flanges
Carbon steel flanges are widely used in oil and gas pipelines, refineries, chemical processing plants, and power stations. They are also commonly used in water supply systems, fire protection networks, HVAC systems, and general industrial piping.
Their versatility and reliability make carbon steel flanges suitable for both onshore and offshore applications.
Manufacturing and Quality Control
Carbon steel flanges are produced using forging or casting processes, followed by precision machining to achieve accurate dimensions. Heat treatment may be applied to improve mechanical properties and ensure consistent performance.
Strict quality control measures are implemented, including chemical analysis, mechanical testing, dimensional inspection, and non-destructive testing. Reputable manufacturers supply flanges with mill test certificates to ensure traceability and compliance with standards.
Choosing the Right Carbon Steel Flanges Supplier
Selecting a reliable supplier is critical to ensuring quality and performance. A trusted carbon steel flanges supplier will offer a wide product range, international standard compliance, competitive pricing, and timely delivery.
Certifications, technical support, and after-sales service are important factors to consider when choosing a supplier for carbon steel flanges.
Conclusion
Carbon steel flanges are a fundamental component of industrial piping systems, offering strength, durability, and cost-effective performance. Their wide range of types and applications makes them suitable for diverse industries.
By sourcing from an experienced and reputable supplier, industries can ensure safe, efficient, and long-lasting piping connections.
