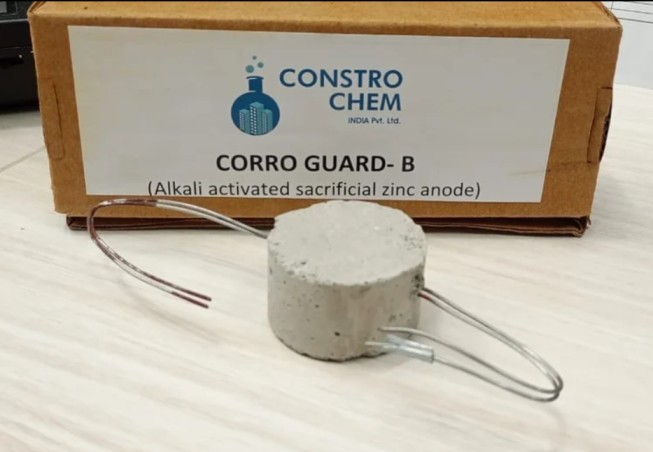

Zinc concrete anode
Reinforced concrete structures are the backbone of modern infrastructure, from bridges and parking garages to residential buildings and industrial plants. Over time, these structures face a major threat—corrosion of steel reinforcements due to moisture, chloride ingress, and environmental exposure. Fortunately, a revolutionary solution has emerged in recent years—Zinc Concrete Anode technology. This innovation is rapidly transforming how we protect and extend the life of concrete structures.
What is a Zinc Concrete Anode?
A Zinc Concrete Anode is a specialized component used in cathodic protection systems to prevent corrosion in steel-reinforced concrete. Zinc, being a more reactive metal, acts as a sacrificial anode. When embedded into concrete, it corrodes instead of the steel reinforcement, thereby protecting the structure.
This method falls under the category of Zinc Anode Protection or Zinc Corrosion Protection Anodes, providing a passive yet highly effective way to mitigate corrosion and prolong structural integrity.
Why Reinforced Concrete Needs Protection
Concrete is known for its strength and durability, but it’s not immune to deterioration. Steel reinforcements inside concrete are susceptible to rust when exposed to moisture, salts, or carbon dioxide. As steel corrodes, it expands, leading to cracks, spalling, and eventually, structural failure.
Traditional corrosion mitigation methods—like coatings, sealants, or overlays—only delay the inevitable. What structures really need is long-term, active corrosion protection, and this is where the Cathodic Protection Anode system, especially using zinc, becomes essential.
How Zinc Concrete Anode Works
The Concrete Zinc Anode is typically installed during construction or retrofitted into existing structures. Once connected to the steel reinforcement, it creates a galvanic cell. Because zinc has a more negative electrochemical potential than steel, it becomes the sacrificial anode and corrodes in place of the steel.
This cathodic protection mechanism reduces or completely stops the corrosion process on the steel surface, ensuring the structure remains safe and intact for decades.
Key Advantages of Zinc Concrete Anode Technology
1. Self-Sustaining Protection
Zinc anodes do not require an external power source. Once installed, they begin protecting the steel immediately and continue to function until the zinc is depleted.
2. Environmentally Friendly
Unlike impressed current systems that require electricity and monitoring, Zinc Concrete Anode are passive and have minimal environmental impact.
3. Cost-Effective Long-Term Solution
While initial installation may require planning, the long-term maintenance savings are substantial. With reduced repair cycles, asset owners benefit from lower life-cycle costs.
4. Easy Retrofit Capability
Zinc Anode Protection can be applied not only in new builds but also to extend the life of aging infrastructure. It’s a flexible solution that suits both small and large-scale projects.
Applications of Zinc Concrete Anode Systems
Bridges and Highways
Bridges are exposed to harsh environmental conditions, making them prime candidates for Zinc Corrosion Protection Anodes. These anodes help prevent chloride-induced corrosion from de-icing salts and marine environments.
Parking Garages
Parking decks face constant moisture and salt exposure from vehicles. Installing Cathodic Protection Anodes ensures long-term durability and safety for both users and the structure itself.
Marine Structures
Docks, piers, and coastal infrastructure benefit greatly from Zinc Concrete Anode systems due to the constant exposure to seawater and humid conditions.
Residential and Commercial Buildings
High-rise buildings and commercial complexes with underground or exposed reinforcements can also use Concrete Zinc Anodes to mitigate corrosion in foundational elements.
Revolutionizing Structural Health with Zinc Anodes
The shift from reactive to proactive maintenance is a game-changer in civil engineering. Zinc Concrete Anode technology represents this transformation. It allows engineers and facility managers to protect critical assets before visible signs of damage appear.
This revolutionary technology is backed by years of research, field testing, and successful installations worldwide. As demand for sustainable infrastructure rises, the role of Zinc Anode Protection in construction and retrofitting projects is only expected to grow.
